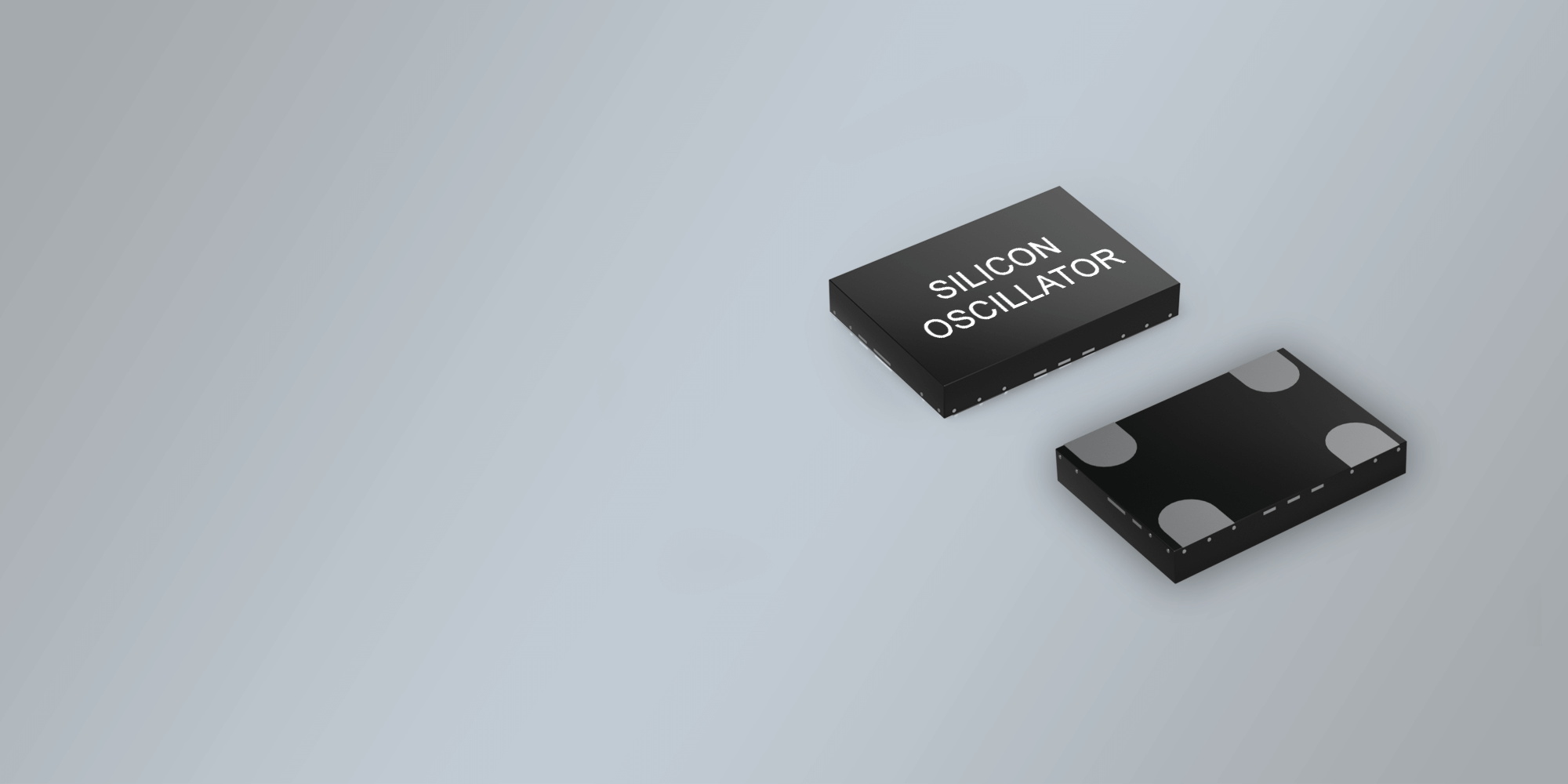

SMD ULTRA-LOW POWER 32.768 kHz OSCILLATORS
- Oscylator o bardzo niskim poborze mocy dla niskich kosztów
- Doskonała niezawodność przez długi czas
- Bardzo niski pobór mocy: 1 µA
- Najmniejszy oscylator pakiety: 1.5 x 0.8mm / 2.0 x 1.2mm
- Wyjątkowo długotrwałe starzenie
- Ekspresowe próbki tego samego dnia, jeśli zamówione do 02:00 p.m.
-
Nazwa produktu
ULPO-RB1
-
Package
SMD QFN/4pad
-
Parametry (W x D x H)
1.5 x 0.8
-
Zakres częstotliwości
32.768 kHz
-
PRODUCT NAME 2
ULPO-RB2
-
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
-
DELIVERY FORM
TAPE & REEL / 3000 pcs. per Reel
-
STORAGE TEMPERATURE RANGE
-55/+125°C
-
OPERATING TEMPERATURE RANGE
-10/+70°C ~ -40/+85°C
-
FREQUENCY STABILITY
±10ppm ~ ±20 ppm @25°C
±75ppm ~ ±100 ppm Temp.-Stab. -
PACKAGE DIMENSIONS
1.5 x 0.8 x 0.6 mm
2.0 x 1.2 x 0.6 mm -
SUPPLY VOLTAGE
1.2 V to 3.63 V
-
<100 PPM frequency stability over -40°C to +85°C temp range
• 2x better stability compared to quartz
• Improves system connectivity and RTC accuracy
-
No load or Vdd filter capacitors
• Eliminates all external capacitors
• Eliminates load-dependent start-up issues common with quartz XTALs
-
Reduced swing oscillator output
• Directly drives into MCU/PMIC/Chipset XTAL IN
• Programmable swing minimizes power
• Oscillator output is insensitive to load and operates with or without load capacitors
-
Ultra-low power: 900nA (typ)
• Extends battery life
-
Smallest packages: 1.5 x 0.8mm/2.0 x 1.2mm
• Saves board space
